Egg Tray Production Line

The complete production line including five systems as follow:

1. Pulp making system

   This system mainly convert the waste paper into uniform slurry so that the forming process can work continuously.  Pulp making system Include the hydrapuler, conveyer, pulp agitator, pulp storage pool, pulp refiner, sewage pump etc.

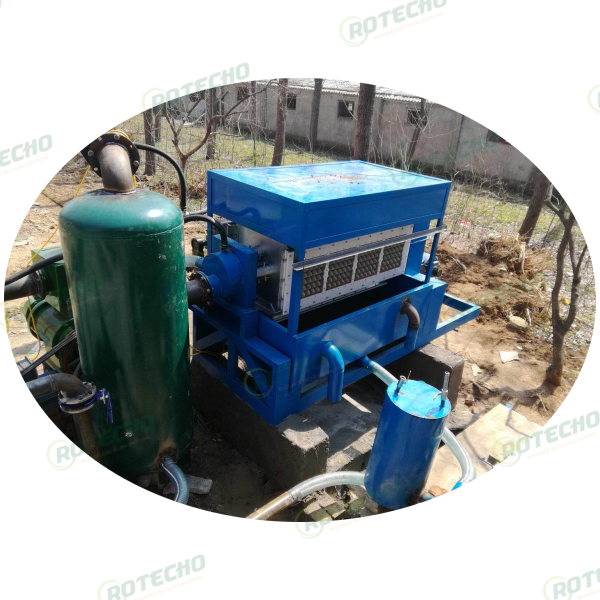

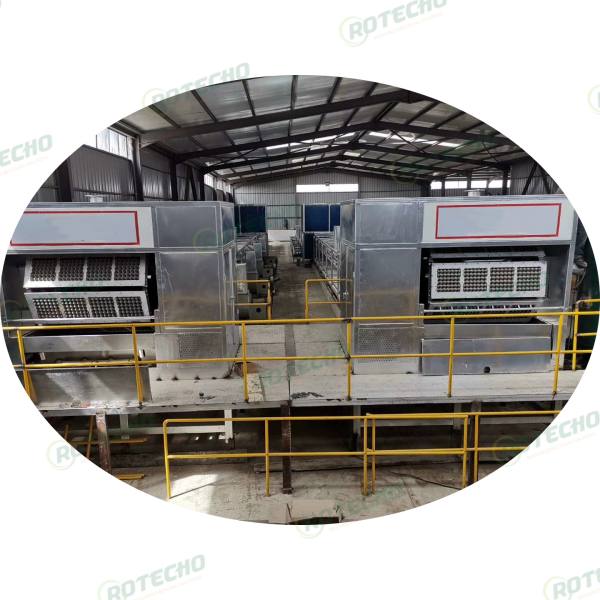

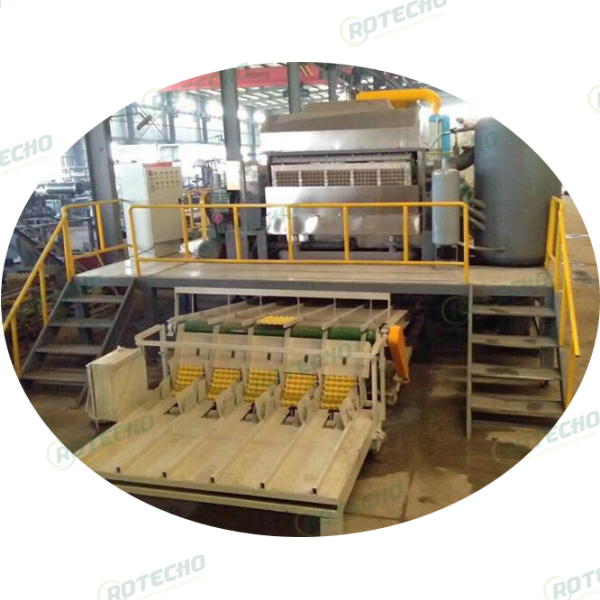

2. Forming system

    Forming system can mould the uniform slurry to get a well shaped product. Generally, forming system includes the forming machine, gas tank,  vacuum pump, air compressor, vacuum pump etc. Different shapes of product can be made by changing the forming molds. Most forming molds are ABS and AL. made, We can customize the forming molds according to your requirement.

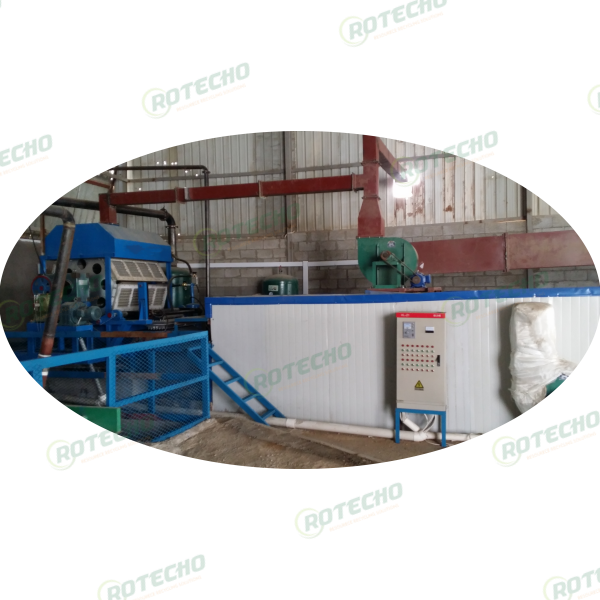

3. Drying system

    Drying system is the end process of this production line, but it also affect the product quality in some degree. Professional inside structure design is very important in the dryer building. There are many types of dryer design for different options.

4. Hot press shaping machine

    The shaping machine worked by the hydraulic pressure. After the unit, the products will have a better surface and quality. This is optional for specially requirement on the product shape.

5. Automatic packing system

    The system can realize the trays collect automatically. Tray products will be  stacked automatically with setted quantity (100pcs - 200pcs ) in a bale. The it will be transfered to the filming machine to pack immediately. This system is designed to improve the working efficiency or lower the labor cost. IT IS OPTIONAL FOR AUTOMATICALL REQUIREMENT.
